AI-Driven Sapphire Optical Fiber Sensors: Decoding Harsh Environment Distributed Sensing

By Farhan MumtazArtificial Intelligence

Key facts
  • Single-crystal sapphire (α-Al2O3) survives past 1600°C [2], but its large unclad core produces severe multimode dispersion, speckle fading, and low signal-to-noise ratios.
  • Experimental OBR data up to 1300°C (Wilson & Blue [3]) shows significant Bragg amplitude drops, spectral broadening, and furnace vibration artifacts that confuse standard peak tracking.
  • Convolutional autoencoders (1D-CNNs) denoise raw backscatter spectra, preserving weak higher-order optical mode energy that traditional low-pass filtering discards.
  • Physics-Informed Neural Networks (PINNs) decouple aerodynamic/vibrational strain (Δε) from high-temperature expansion (ΔT) along the fiber without requiring secondary reference sensors.
  • Deploying quantized models onto edge interrogators enables real-time sub-second distributed monitoring for gas turbines [4], nuclear fuel channels, and continuous casting refractories [1].

The Physical Wall of Silica in Extreme Environments

Optical fibers have transformed structural health monitoring and industrial telemetry. In conventional distributed temperature sensing (DTS) — as reviewed in our distributed temperature sensing guide — fused silica glass performs well up to approximately 800°C. Above 900°C to 1000°C, dopants diffuse rapidly, mechanical embrittlement accelerates, and devitrification to cristobalite destroys waveguiding.

For applications operating between 1000°C and 1600°C — including gas turbine combustors [4], hypersonic airframes, Gen-IV molten-salt nuclear reactors, and Submerged Entry Nozzles (SENs) in steelmaking [1] — single-crystal sapphire (α-Al2O3) is the primary viable waveguide. With a melting point of 2040°C and strong chemical resistance, sapphire withstands conditions that destroy silica.

However, distributed sensing in sapphire has long encountered optical processing limits. Machine learning is now resolving the modal challenges that traditional demodulation algorithms could not overcome.

Why Distributed Sapphire Sensing Is Difficult

Commercial single-crystal sapphire fibers (typically 75 to 125 µm in diameter) are grown without a low-index cladding. The ambient air or ceramic sheath serves as the cladding, creating several operational challenges:

  1. Multimode Modal Dispersion: The entire cross-section acts as an open core with a large numerical aperture (NA > 0.7), supporting hundreds of propagating modes with different group velocities.
  2. Intermodal Crosstalk and Speckle Fading: Backscatter reflections from inscribed femtosecond Fiber Bragg Gratings (fs-FBGs) [2] or intrinsic Rayleigh scatter form complex multimode interference patterns rather than clean single-mode peaks.
  3. High-Temperature Blackbody Radiation: Above 1100°C, thermal emission from the fiber and surrounding furnace walls creates a broad background radiation floor that drowns weak backscattered light in Optical Frequency Domain Reflectometry (OFDR).

Under rapid thermal gradients, modal interference shifts dynamically. Standard centroid or Gaussian peak-tracking algorithms frequently jump between adjacent modal sub-peaks, causing erroneous temperature fluctuations of tens to hundreds of degrees.

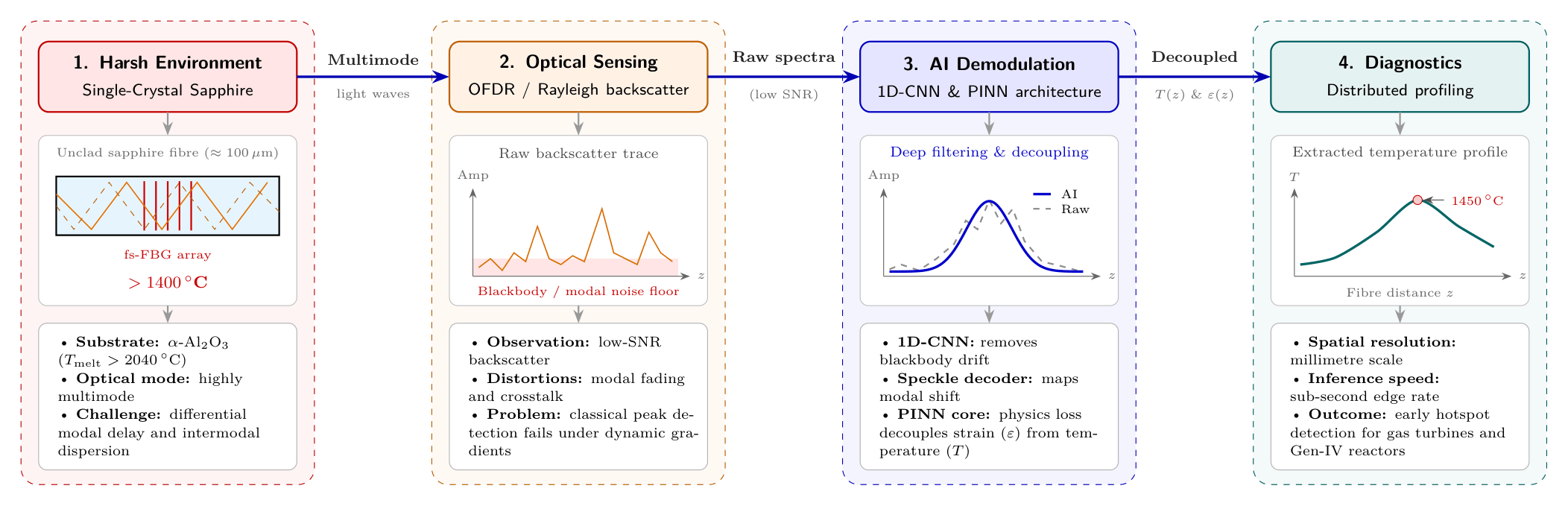

Figure 1: End-to-End Architecture: From Harsh Environment to AI Distributed Diagnostics

Four-stage schematic showing sapphire fiber under extreme heat, raw noisy OFDR reflectogram, AI CNN/PINN demodulation engine, and the resulting distributed high-temperature gradient profile up to 1450°C

The sensing and demodulation chain: light propagates through unclad sapphire in extreme conditions, raw noisy backscatter is captured via OFDR, neural networks denoise and decouple physical states, and the system produces an accurate, real-time distributed profile.

Real-World Experimental Evidence: What Happens at 1300°C

The signal degradation in sapphire fiber was experimentally verified in landmark work by Wilson and Blue [3], who interrogated an array of Type-II fs-FBGs in cladded sapphire fiber up to 1300°C using an Optical Backscatter Reflectometer (OBR):

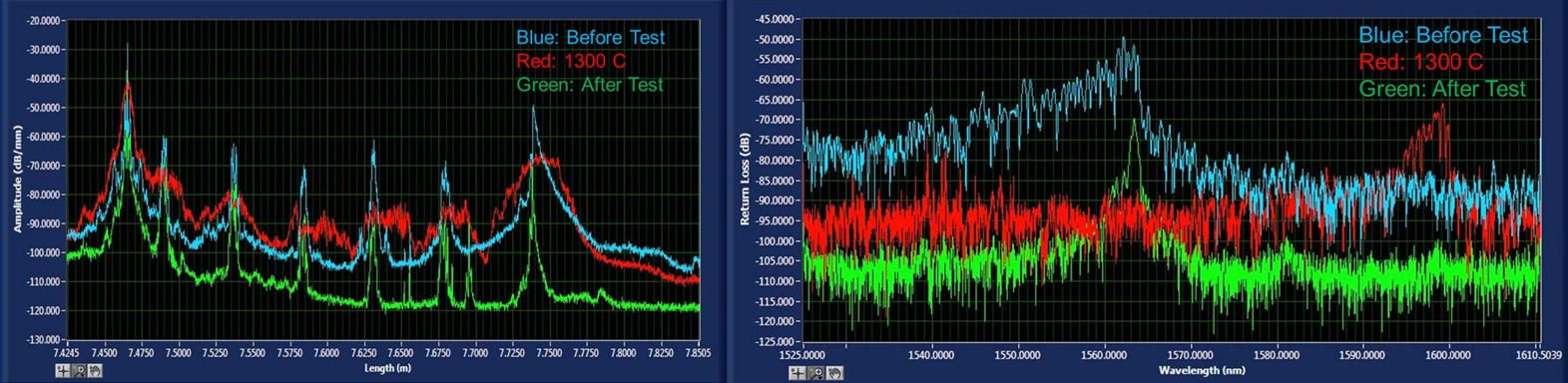

Figure 2: Real OBR Signal Degradation at 1300°C (Adapted from Wilson & Blue [3])

OBR reflected amplitude traces and return loss spectra at room temperature versus 1300°C from Wilson and Blue (2018), demonstrating peak broadening and amplitude reduction

Experimental OBR traces from Wilson & Blue [3]: (Left) shows reflected amplitude along fiber position dropping sharply at 1300°C; (Right) shows the return loss spectrum shifting by ~50 nm, broadening, and experiencing multimode power redistribution.

Wilson & Blue [3] noted two critical insights that illustrate why traditional signal processing struggles in the field:

  • Reflected Amplitude Drop: As shown in Figure 2(left), the reflected Bragg signal amplitude dropped significantly during thermal cycling to 1300°C, reducing the signal-to-noise ratio.
  • Unresolved Strain Interference: The authors documented unexplained temperature oscillations (±25°C) caused by furnace air currents vibrating the fiber. Because classical OFDR cannot differentiate strain from thermal expansion along the same segment, physical vibrations translated directly into temperature errors [3].

How Machine Learning Solves the Multimode Problem

Machine learning addresses these physical limitations by treating modal dispersion and signal distortion as learnable inverse mapping problems rather than unusable noise.

1. Deep Spectral Denoising via 1D-CNNs

When interrogating sapphire fibers via OFDR or spectrometers, high-temperature blackbody radiation and modal fading create high noise floors. Traditional frequency-domain low-pass filtering smears spatial resolution and attenuates the higher-order modes that carry sensor state data.

By training 1D Convolutional Neural Networks (1D-CNNs) on raw spectral sweeps, the network separates characteristic deterministic Bragg signatures from stochastic thermal radiation. This lowers the effective noise floor and tracks reflection peaks through the amplitude drops documented in high-temperature trials [3].

2. Dynamic Multimode Speckle Demodulation

Instead of using mode-selective spatial filters — which discard over 90% of the returned light — deep learning models can interpret the multimode speckle pattern directly. As demonstrated by Nguyen et al. [5], deep neural networks can extract clean sensing parameters from dynamic, highly noisy multimode fiber interference patterns, allowing sensor systems to operate reliably despite modal crosstalk.

3. Physics-Informed Neural Networks (PINNs) for Decoupling

Separating thermal expansion from mechanical or aerodynamic strain is a long-standing challenge in optical sensing. The total Bragg wavelength shift is governed by:

ΔλB = λB · [ (α + ξ)ΔT + (1 − pe)Δε ]

In multimodal sapphire fibers, the thermal expansion coefficient (α), thermo-optic coefficient (ξ), and photo-elastic coefficient (pe) shift nonlinearly above 1000°C. PINNs resolve this by embedding the physical equations of thermo-elasticity directly into their loss function during training. As a result, the model distinguishes between mechanical vibration/strain (Δε) and real temperature excursions (ΔT) — directly addressing the strain artifacts observed in furnace trials [3].

Applications in Hostile Distributed Environments

Aero-Engines and Gas Turbines

Turbine inlet temperatures regularly exceed 1400°C. A single sapphire optical fiber running along combustor walls and nozzle guide vanes provides a continuous thermal profile, helping operators detect localized hot spots before thermal barrier coatings flake or combustor walls burn through [4].

Molten-Salt and Gen-IV Nuclear Reactors

Molten fluoride and chloride salt reactors combine high temperatures (700°C to 950°C) with corrosive chemistry and high-flux neutron radiation. Standard silica fibers darken within hours due to Radiation-Induced Attenuation (RIA). Single-crystal sapphire resists radiation darkening [2], and AI-assisted demodulation tracks thermal profiles across heat exchanger loops reliably.

Continuous Metallurgy and Refractory Linings

In continuous casting, as documented in our tundish sensing field study [1], molten steel transfers require continuous thermal monitoring. Sapphire sensing arrays embedded in refractory walls provide early detection of slag line erosion, alumina clogging, and thermal shock fractures.

Implementation: Edge Hardware Deployment

To be effective in field operations, AI models cannot depend on remote cloud processing. Response times must remain fast enough to detect thermal runaway events.

Quantized neural networks (using INT8 precision) deployed on field-programmable gate arrays (FPGAs) or embedded Tensor Processing Units (TPUs) integrated directly into optical interrogators process backscatter sweeps in under 10 milliseconds. This edge capability turns sapphire sensors into real-time closed-loop process control systems.

Conclusion

Sapphire fibers possess the physical resilience required for extreme environments [2], [4], but modal dispersion and high-temperature signal degradation long complicated their deployment [3]. Combining sapphire sensors with AI demodulation transforms complex modal behavior into reliable data [5], making continuous distributed sensing above 1300°C practical for industrial systems.
