From G80 to Vera Rubin: Two Decades of Architectural Disruption in GPU Computing

The Genesis of General-Purpose GPU Computing

At the turn of the millennium, graphics cards were strictly dedicated display rasterizers. Prior to 1999, the host CPU computed all 3D geometric transformations and vertex lighting (T&L), passing flat 2D primitives to graphics accelerators. The release of the GeForce 256 integrated T&L directly into silicon hardware, formally defining the Graphics Processing Unit (GPU) [1], [4].

However, early programmable GPUs (such as GeForce 3 and GeForce FX) were difficult to use for non-graphical applications. As documented by Dally, Keckler, and Kirk [1], researchers seeking to harness the raw floating-point operations (FLOPS) of graphics chips had to cast linear algebra problems as geometric triangles, mapping matrices into texture arrays and extracting numerical answers from frame buffers through complex fragment shaders.

The turning point arrived in November 2006 with the release of the G80 architecture (GeForce 8800 / Tesla) and the launch of CUDA [1].

The G80 Architecture: Unified Shaders and Stream Processing

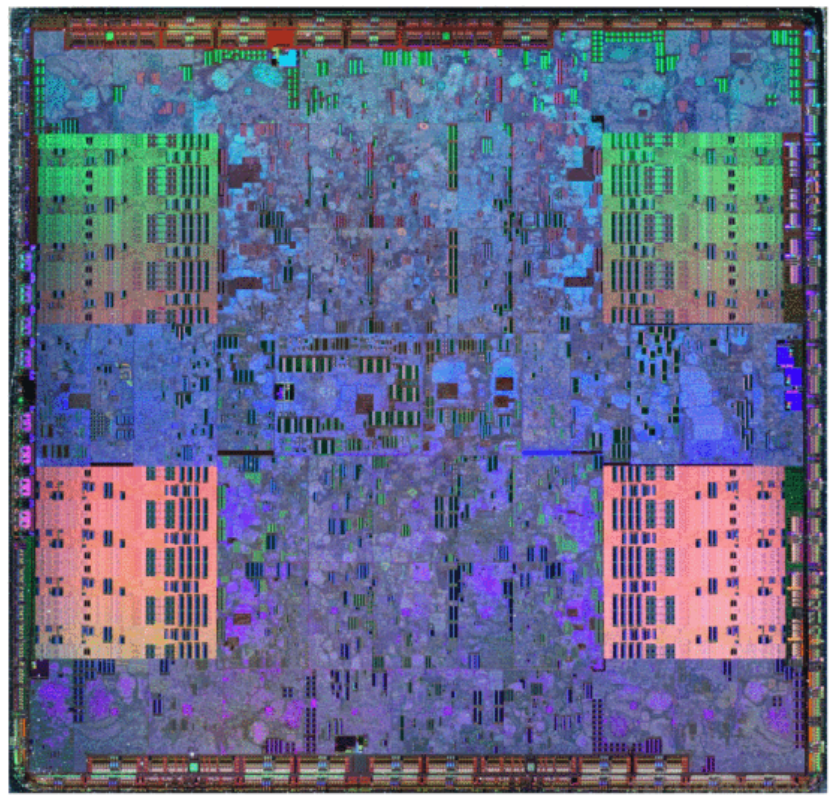

As shown in the silicon die photo in Figure 1, the G80 consolidated previously segregated vertex and pixel hardware into arrays of unified Streaming Multiprocessors (SMs) [1]. Rather than routing arithmetic through fixed graphics pipes, the G80 organized processing into Single Instruction, Multiple Threads (SIMT) execution blocks.

By providing on-chip shared memory to facilitate low-latency communication between thread arrays, G80 established the modern computing model: a C-like programming abstraction that eliminated the need to disguise mathematical algorithms as texture blending [1]. Fabricated on a 90 nm process with 681 million transistors, G80 delivered 346 GFLOPS of single-precision (FP32) performance and 86 GB/s of DRAM bandwidth [1] — laying the foundation for modern supercomputing.

The Deep Learning Explosion and Huang's Law (2012–2020)

Over the following decade, the convergence of deep learning algorithms (backpropagation, CNNs), large curated datasets (ImageNet), and massively parallel hardware transformed computing [1]. AlexNet demonstrated in 2012 that training on two Fermi-generation GeForce GTX 580 GPUs could outperform decades of hand-crafted computer vision models.

To support growing model complexity, GPU design shifted from general floating-point pipelines to specialized deep-learning microarchitectures [1], [5]:

• Pascal (2016): Introduced half-precision (FP16) compute, doubling arithmetic throughput, and introduced NVLink 1 to facilitate direct GPU-to-GPU memory pooling [1].
• Volta V100 (2017): Introduced hardware Tensor Cores. A single HMMA instruction executed a 4×4 FP16 matrix multiply-accumulate per cycle (128 floating-point operations), amortizing instruction decoding overhead and delivering 125 TFLOPS of specialized AI throughput [1].
• Turing (2018): Added integer tensor cores (INT8 IMMA) for low-latency inference alongside dedicated RT Cores for real-time ray-tracing BVH traversal [1], [4].
• Ampere A100 (2020): Scaled monolithic silicon to a reticle-limited 826 mm² die with 54 billion transistors on a 7 nm process [1], [5]. Ampere introduced 2:1 structured sparsity (doubling throughput by dropping unneeded weights without accuracy loss) and TensorFloat-32 (TF32), delivering 624 TFLOPS of sparse FP16 compute and 2,000 GB/s of HBM2e bandwidth [5].

Between 2012 (Kepler) and 2020 (Ampere), single-GPU inference throughput increased by 317× [1]. This sustained performance scaling — outpacing classical Moore's Law by over 2× per year — came to be known across the semiconductor industry as Huang's Law [1].

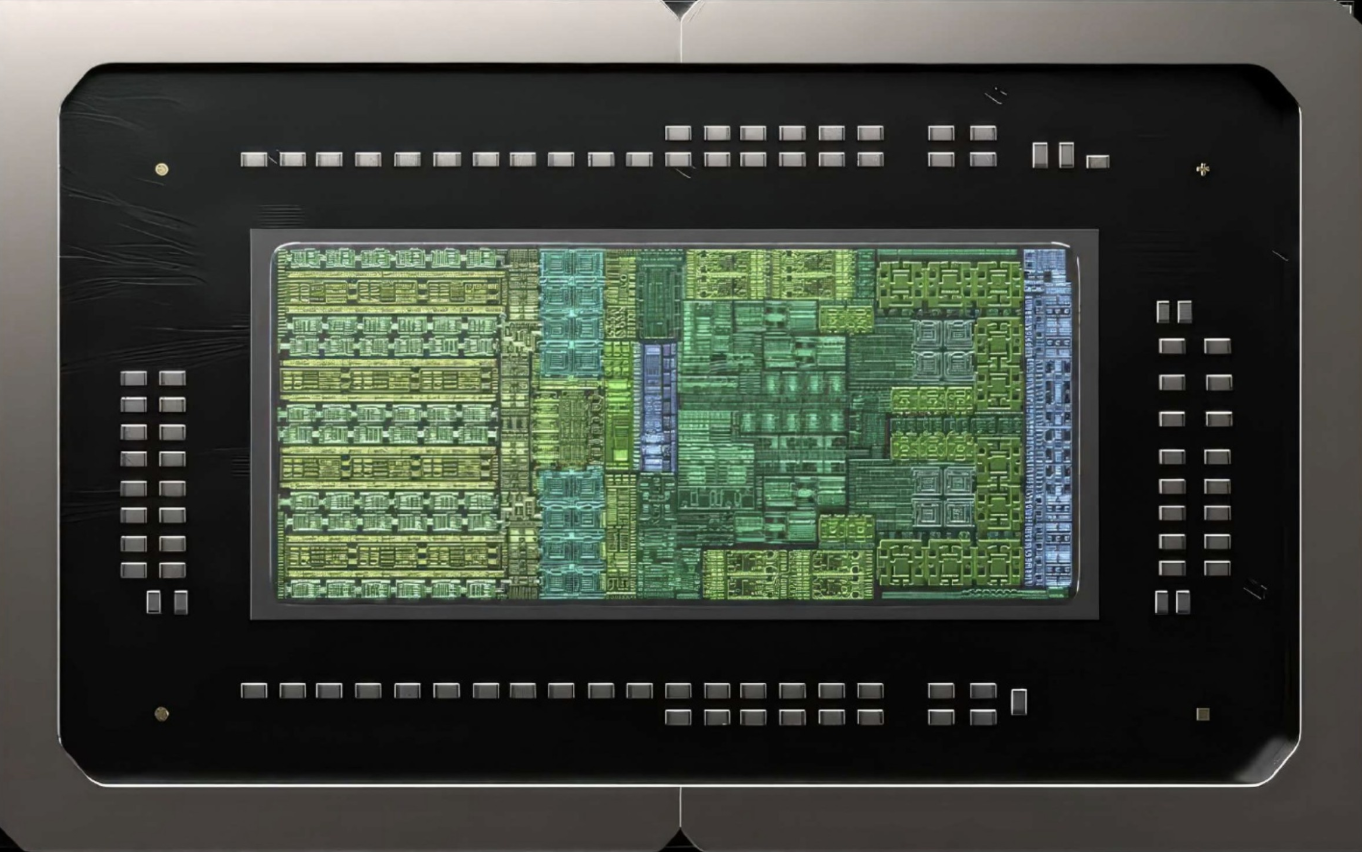

Hitting the Monolithic Reticle Wall

By 2022, traditional silicon scaling encountered hard physical boundaries. Photolithography scanner reticle limits (~858 mm²) cap the maximum area of a single die. Furthermore, the demise of Dennard scaling meant supply voltages could no longer scale downward without leakage currents causing thermal runaway.

Continuing the performance curve required abandoning monolithic single-chip packages in favor of multi-die chiplets and advanced packaging [1], [4]. The Blackwell generation (2024) bridged two full reticle-sized dies over a 10 TB/s ultra-low-latency interconnect (NV-HBI), functioning logically as a single 208-billion-transistor processor.

GTC 2026: The Vera Rubin Era and AI Factories

At the GTC 2026 conference in San Jose, NVIDIA CEO Jensen Huang unveiled the next major phase of this roadmap: the Vera Rubin platform [2], [3].

Marking the shift from discrete accelerator add-in boards to unified datacenter supercomputing architectures, the Vera Rubin platform introduces foundational changes designed for production in the second half of 2026 [2], [3]:

1. Unified Vera CPU + Rubin GPU Architecture: Following the Grace Blackwell model, Vera Rubin integrates high-throughput custom ARM-based Vera CPUs with Rubin multi-die GPUs via high-bandwidth coherent interconnects [3].
2. Next-Generation HBM4 Memory: Addressing the persistent memory-bandwidth bottleneck documented in early HPC architectures [1], Rubin integrates 6th-generation High Bandwidth Memory (HBM4) through 3D stacked silicon interposers, surpassing 20 TB/s of aggregate memory bandwidth per subsystem.
3. Sub-Byte Micro-Scaling Transformer Engine: Building on FP8 and FP4 micro-scaling standards, Rubin incorporates native hardware acceleration for emerging ultra-compact arithmetic formats, slashing energy consumption per matrix multiply [3].
4. 6th-Generation NVLink & Optical Switching: Rack-scale computing clusters (such as NVL-class systems) connect dozens of Rubin GPUs into a single shared-memory pool running at multi-terabyte-per-second inter-chassis bandwidth [2], [3].

As highlighted in Huang's keynote, the GPU has outgrown the definition of a standalone chip. Modern installations are treated as “AI Factories” — fully integrated thermodynamic systems combining compute silicon, optical InfiniBand fabric, direct-to-chip liquid cooling manifolds, and power delivery infrastructures operating at the multi-megawatt and multi-gigawatt scale [2].

The Computational Implications for Modern Sensing

The 20-year trajectory from G80 to Vera Rubin reflects a fundamental truth of physical engineering: algorithms, hardware architectures, and physical sensors co-evolve.

The parallel architectures developed to calculate ray intersections and tensor matrix multiplications are precisely the engines needed to decode complex physical sensor streams. High-bandwidth GPUs process massive arrays of optical backscatter data from sapphire fiber sensors in milliseconds, decouple high-temperature physical cross-sensitivity via Physics-Informed Neural Networks (PINNs), and monitor complex thermal cooling loops across multi-gigawatt computing facilities.

Conclusion

The progression from G80’s 681 million transistors in 2006 to the multi-chiplet, rack-scale Vera Rubin architectures of 2026 represents one of the most sustained scaling achievements in engineering history [1], [2]. By continually transforming silicon architecture to solve real-world computational bottlenecks, the GPU has expanded from a fixed-function graphics pipeline into the universal computing engine of modern physical and artificial intelligence.
