Engineering Fiber Optic Sensors for Harsh Environments: Packaging, Interrogation, and Signal Processing

By Farhan MumtazOptical sensing

Key facts
  • Filament-based glass processor splicing fuses silica lead-in fiber to angle-polished (8°–30°) sapphire sensing fiber facets.
  • A linear Arrayed Waveguide Grating (AWG) interrogator filters out the blackbody radiation "hump" that floods standard OSAs above 1400°C.
  • FFT analysis confirms measured ±1°C fluctuations at 1600°C are genuine furnace dynamics — not detector noise — with dominant frequencies below 0.0477 Hz.
  • The same architecture extends to aerospace propulsion, power generation, and RF/microwave materials processing.

Bridging the Laboratory to the Plant Floor

Deploying fiber optic sensors into high-temperature industrial processing requires more than inscribing high-quality gratings, as covered in earlier articles on first-order sapphire FBG fabrication and rapid heat treatment. The entire optical chain — from heterogeneous fiber splicing to interrogation architectures and signal processing algorithms — must be engineered to resist mechanical vibration, signal attenuation, and extreme thermal radiation.

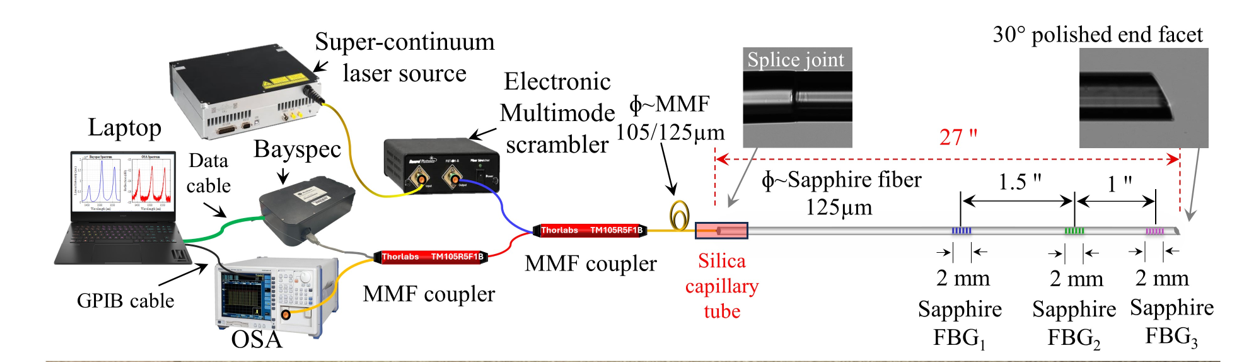

Figure 1: Interrogation Optical System Layout

Optical chain diagram showing a supercontinuum laser source, electronic multimode scrambler, MMF couplers, OSA and Bayspec interrogators, a silica-to-sapphire splice joint detail, and a 30-degree polished end facet detail along a 27-inch sapphire fiber with three cascaded FBGs

Light Source (supercontinuum) → mode scrambler → multimode coupler → heterogeneous silica-to-sapphire splice joint → cascaded sapphire FBGs, with signal returned to an OSA and a linear AWG (Bayspec) interrogator in parallel.

Heterogeneous Splicing: Coupling Silica to Single-Crystal Sapphire

A major engineering challenge in sapphire sensing is connecting the rigid, unclad sapphire sensing fiber (125 µm diameter) to standard silica multimode lead-in fibers (105/125 µm MMF). Standard arc fusion splicers struggle due to the vast mismatch in melting temperatures between silica glass (~1600°C) and single-crystal sapphire (~2045°C).

By using filament-based glass processor splicing, controlled localized thermal energy softens the silica glass fiber around the sapphire fiber facet, forming a mechanically robust splice joint.

Critical Splicing Steps

  1. End-Facet Angle Polishing: The sapphire fiber end-facet is polished at an 8° to 30° angle to minimize unwanted Fresnel reflections that introduce baseline interference.
  2. Protective Sleeving: Splice joints are encased within high-purity silica or alumina capillary tubes, enabling the joint to endure ambient-to-intermediate temperatures (up to 700°C–1000°C) near the furnace port.

Interrogator Systems: OSA vs. Linear AWG Architectures

Extracting clean Bragg reflection peaks from multimode fibers at 1600°C requires selecting the appropriate optical interrogation hardware:

Interrogator Parameter Standard Optical Spectrum Analyzer (OSA) Linear AWG System (e.g., BaySpec)
Measurement scale Logarithmic power scale (dB) Linear intensity scale (a.u.)
Sampling speed Slow sweep rates (seconds to minutes) High speed (1 Hz to 1 kHz real-time)
Blackbody radiation impact Highly sensitive to thermal background "hump" Minimizes blackbody noise via narrow optical filtering
Multimode complexity Captures complex intermodal interference Isolates dominant spatial modes for clean peak identification
Vibration tolerance Medium (moving dispersive optics) High (solid-state 1D CCD array with AWG)

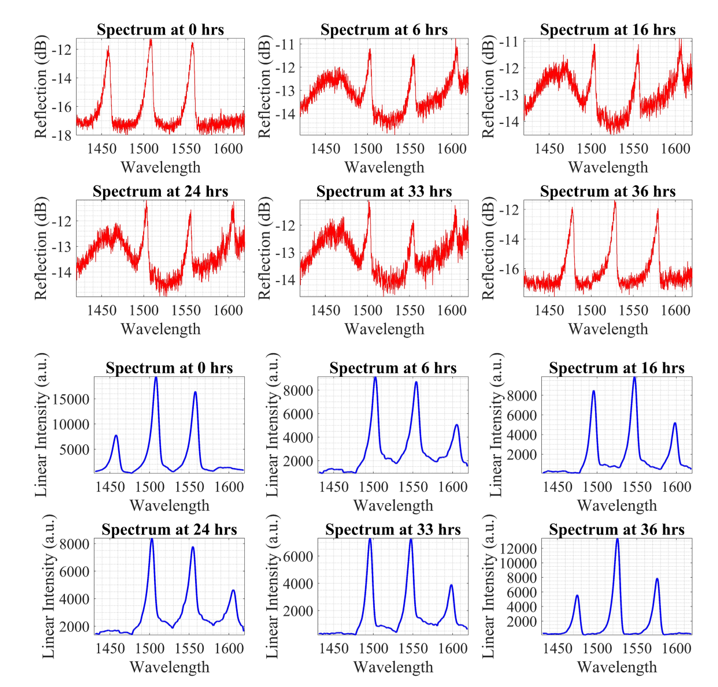

Figure 2: OSA (Logarithmic) vs. Linear AWG Reflection Spectra over 36 Hours at 1600°C

Grid of six OSA logarithmic-scale reflection spectra and six linear-intensity spectra recorded at 0, 6, 16, 24, 33, and 36 hours, showing three sapphire FBG peaks between 1450 and 1620 nm with a flatter baseline on the linear scale

Top rows: OSA logarithmic-scale spectra show a raised background "hump" from blackbody radiation. Bottom rows: the same three FBG peaks on a linear AWG intensity scale, with a visibly flatter, filtered baseline, tracked continuously from 0 to 36 hours at 1600°C.

The linear Arrayed Waveguide Grating (AWG) system isolates the primary Bragg peak while filtering out non-coherent thermal blackbody radiation that typically floods optical detectors at temperatures above 1400°C.

Validating Stability: Sapphire FBG vs. Thermocouple at 1600°C

To prove the measurement integrity of sapphire FBGs at steady-state temperatures, long-duration comparisons against a reference thermocouple provide a direct check on drift and noise.

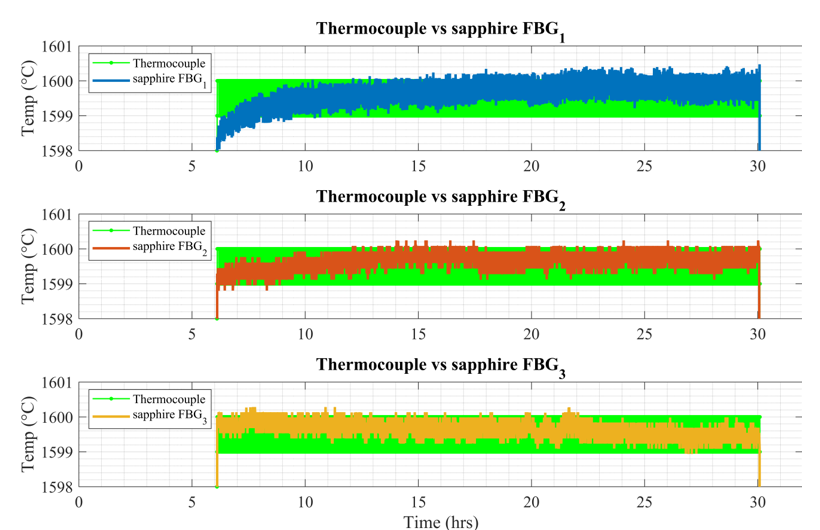

Figure 3: 30-Hour Thermocouple vs. Sapphire FBG Comparison at 1600°C

Three stacked time-series plots comparing a reference thermocouple against sapphire FBG1, FBG2, and FBG3 over 30 hours at 1600°C, with all traces tracking within about 1-2°C of each other

Each of the three cascaded sapphire FBGs tracks the reference thermocouple closely over a continuous 30-hour hold at 1600°C, confirming long-term measurement agreement rather than sensor drift.

FFT Noise Analysis: Distinguishing Thermal Drift from Sensor Noise

To further verify measurement integrity, Fast Fourier Transform (FFT) analysis is applied to de-trended time-series thermal data at steady-state 1600°C conditions:

  • Sub-Nyquist Dominance: FFT analysis confirms that dominant frequency components lie below 0.0477 Hz (well within the sub-Nyquist band for a 1 s sampling rate).
  • Noise Floor Suppression: High-frequency spectral power falls at least one order of magnitude below the 99% noise floor envelope.
  • Conclusion: Measured ±1°C temperature fluctuations represent genuine low-frequency industrial furnace thermal dynamics, rather than optical detector noise.

Broad Industrial Applications

Beyond steelmaking SENs and tundishes, ultra-high-temperature distributed sapphire FBG sensors open up new capabilities across demanding sectors:

  1. Aerospace Propulsion: Real-time thermal mapping of turbine blade passages, exhaust nozzles, and jet engine combustion chambers.
  2. Energy & Power Generation: Thermal dynamics profiling inside gasifiers, coal-fired power boilers, and high-temperature nuclear reactors.
  3. Advanced Materials Processing: Microwave and radio-frequency material sintering where electromagnetic interference renders electric sensors non-functional.

Conclusion

Splicing, interrogation architecture, and noise validation are what turn a laboratory-grade sapphire FBG into a sensor that can be trusted on a live production line. Paired with the fabrication and signal-conditioning techniques covered in the related articles on first-order grating design and rapid heat treatment, this is the engineering that carried a cascaded sapphire FBG array from the lab bench to a live 1600°C steelmaking deployment.

Related reading: the tundish sensing case study and the FBG calibration tool.

Frequently Asked Questions

How are silica lead-in fibers connected to single-crystal sapphire sensing fibers?

Filament-based glass processor splicing is used to fuse silica glass around angle-polished (8°–30°) sapphire fiber facets, minimizing Fresnel reflections and creating a stable joint protected by ceramic sleeves.

How do linear AWG interrogators overcome blackbody radiation at 1600°C?

Linear AWG interrogators utilize linear intensity scales and narrow optical filters to isolate coherent FBG reflections from the non-coherent blackbody thermal background "hump" that saturates traditional OSAs at high temperatures.
